How Does a Blend Door Actuator Work?
A blend door actuator controls the temperature and the flow of the air in a car. If your vehicle is only releasing cold air, or if you are not able to change the airflow, it may be because of a malfunctioning actuator.
Sometimes, the fix needs recalibration, and sometimes you need to replace the part that is broken. Going through either of them depends on your assessment.
Anyway, here we are going to describe the working mechanism of an actuator and how you can replace it.
Blend Door Actuator: How does it Work?
An air blend door actuator is a small electric motor that houses a plastic construction. In the unit, a door position sensor is incorporated, too, that sends information to the climate control computer.

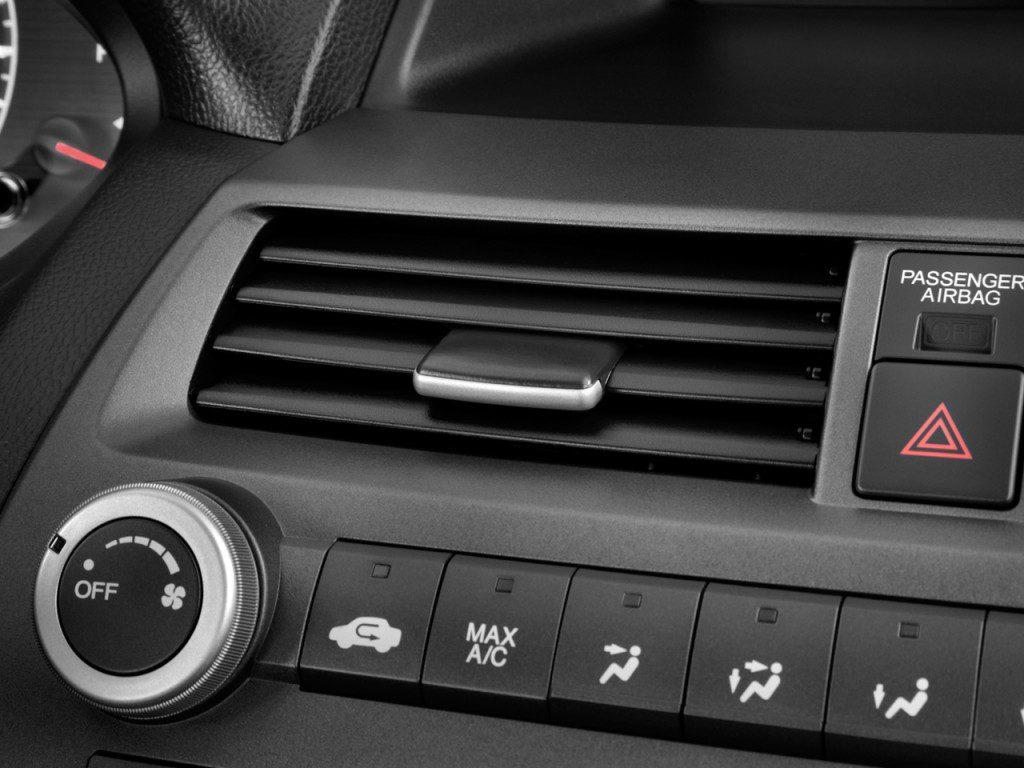

This actuator hence controls the temperature and air direction as per the settings. The settings work for different aspects such as temperature, floor, mid vent, defrost, and fresh air. This way, a passenger can control the temperature of the air and in which direction they want the flow of this air.
As per the brand and the year of make, the number of these units varies so that passengers can set the air as per their comfort.
READ MORE:
Why Does an Actuator Go Wrong?
The blend door actuator controls the air door rotation. This device is a motor that resides in a secure structure. The unit can go wrong if the motor is burnt, and hence it becomes non-functioning.
The next reason can be the structure in which the motor resides. If anything goes wrong or breaks in the structure it can make the motor malfunction or function with some kind of sound.
So now that you know what is a blend door actuator and what can go wrong with it, calling a professional solves the issue at the earliest. You can also go the DIY way, and for that, here are the steps.
Replacing the Blend Door Actuator
To replace the blend door actuator, you need to purchase a specific kit that you can order online or buy from the nearby repair center. Doing it yourself can save you from the labor cost, and you only pay for the kit itself.
You need to start by removing the plastic cover under the car’s dashboard. Use a small socket and ratchet to remove the bolts and you can take off the plastic cover.
Once the cover is removed, you will be able to see the wiring and various controls there. Here you can find the right side temperature actuator that functions for dual climate controls.
Here you will need a small screwdriver to separate the wiring safety clip from the actuator. Gently remove the wiring connector and free the actuator.
See if no connection is broken or there is no rust around. Proceed further on the next step after knowing, “what does a blend door actuator do.”
You may find some more screws out there that are removable using the screwdriver easily. Remember to place all your screws securely, so you don’t lose them.
Once all the screws are removed, you become able to pull out the actuator for further operation.
Also, ensure that the airflow door is not stuck; manually rotate it in both directions to ensure.
Make sure there are no obstructions holding the airflow door; remove the dust and debris before installing the new actuator. So, the idea is to check the whole assembly and not just the actuator.
Continuing the Process, these Steps Follow
To test the blend door operation and to double-check that you are changing the correct actuator motor, turn the blower motor on and work the door in each way. You will be able to feel the air change temperature or vent level.
When you buy the actuator, it should match the current one. Check the wiring harnesses to be identical as they should go right with the terminals.
Now, it is time to install the new actuator. Replicate the positioning of the old actuator and place accordingly. When you tighten the screws, do not overdo as they are mounted in a plastic housing that can break.
Once you have done the screws, put a bit pressure on the wiring harness connector, so it sets into the actuator. When you hear a clicking sound upon this pushing function, it means that the connector is properly installed.
When you are sure that all the wires and bolts are set securely, it is time to put the plastic cover back. Once you have put the plastic cover on, tighten it using the mounting screws; you need to put everything back in order.
Afterward, your job is to check the blend door actuator by using the climate control if it is blowing hot and cold air. In most cases, it should be fixed, and if it doesn’t, there is no harm in taking your car to a professional repairer.
Sometimes, there can be a major issue, and that can be confirmed after an in-depth check. Have a look at some maintenance tips to ensure if you are doing the procedure correctly so nothing gets frayed.
FAQs
-
What are the signs of a failing blend door actuator?
Common signs of a failing blend door actuator include inconsistent temperature control, strange clicking or tapping noises from the dashboard, and poor airflow distribution.
If you can’t adjust the temperature properly, or if hot or cold air only comes out of specific events regardless of your settings, the blend door actuator may be at fault.
-
Can a blend door actuator be repaired, or does it need to be replaced?
In some cases, a blend door actuator can be repaired by replacing the internal gears or components. However, it’s often more practical to replace the entire actuator, especially in electric actuator systems, as they can be complex to disassemble and repair.
-
How can I diagnose a blend door actuator problem?
Diagnosing a blend door actuator problem typically involves checking for error codes using a diagnostic scanner, listening for unusual noises when adjusting the temperature, and visually inspecting the actuator for physical damage.
Additionally, checking the vehicle’s service manual for specific diagnostic procedures can be helpful.
-
Is it possible to replace a blend door actuator yourself, or should it be done by a professional?
Replacing a blend door actuator can be a DIY project if you have some mechanical aptitude and the necessary tools. However, it can vary in difficulty depending on your vehicle’s make and model.
Some blend door actuators are relatively easy to access and replace, while others may require more extensive disassembly of the dashboard.
If you’re unsure, it’s best to consult your vehicle’s service manual or seek the assistance of a professional mechanic.
-
Are there any maintenance tips to prevent blend door actuator issues?
Regularly changing your vehicle’s cabin air filter can help prevent debris from entering the HVAC system, which can reduce strain on the blend door actuator and prolong its lifespan.
Additionally, avoiding harsh temperature changes in the cabin can help reduce wear and tear on the actuator.
Check out this video from Auto Repair Guy to learn more about the symptoms of bad blend door actuator!
Conclusion
Check the blend door actuator on all the settings to ensure if the actuator functions in all modes.
Also, there may be a chance that the door is stuck, and there is nothing wrong with the actuator. You can confirm it before buying the actuator so you can determine which part is malfunctioning.
This can save you money that you would spend on the actuator otherwise. If this is the case of calibration simply, it is going to be easier and cheap troubleshooting than when you have to make the replacement.
In case of doubt or if you don’t want to handle the technicalities, calling a professional would be a wise decision.
