What Is Normal Oil Pressure At Idle?

Knowing what the suitable oil pressure should be can help you to make sure that the car engine runs smoothly and stays healthy.

If you notice the low oil pressure, the amount of oil supplied is not enough for lubrication, which will lead to high-friction components in the engine that wear out quickly, loudly, and easily increase heat.

It means that low oil pressure is a warning sign for your engine. Are there any exceptions? And what is normal oil pressure at idle?

What Is Normal Oil Pressure At Idle?

Oil pressure is a vital indicator in car engines you need to consider. However, it’s going to vary depending on some factors: types of engines and temperature.

To know the exact pressure of oil at idle, first, let’s have an overview of the oil pressure.

What is the oil pressure?

Automotive engine oils operate in the form of a circulating system. The oil will be injected by the pump into the engine, then flow into the tank, then continue to be sucked up through the filter and sprayed into the engine.

Oil pressure is created by the pump pumping oil into the vehicle’s engine system. When the engine operates, the normal oil pressure is usually in the range of 25-65 PSI (depending on the vehicle model).

The normal oil pressure always remains stable within this level. If the oil pressure suddenly rises or falls abnormally low, it is a sign that the lubrication system is having problems.

Cars are equipped with an oil pressure sensor. If it detects that the oil pressure is too high or too low, the sensor will transmit a signal. And the ECU will turn on the lubricating oil pressure warning light to notify the driver.

When you see that the car has abnormally low or high oil pressure, it should be checked as soon as possible. Because the lubrication system malfunction will greatly affect the engine.

Read more: Is It Ok To Mix Oil Brands In Your Engine?

What should oil pressure be at idle?

To ensure your car engine operates with the best performance. Automakers recommend that the oil pressure should always be above 20 PSI (pounds per square inch) when idling.

However, corresponding to each type of vehicle, we will have different pressure levels:

  • Truck: 20-30 PSI at idle
  • Car: 25-35 PSI at idle

Most carmakers suggest that oil pressure should be around 30 PSI when running idle and about 60 PSI when the engine is running at higher speeds.

If you notice that the oil pressure is low than 20 PSI, you should check as soon as possible.

what is a good oil pressure at idle

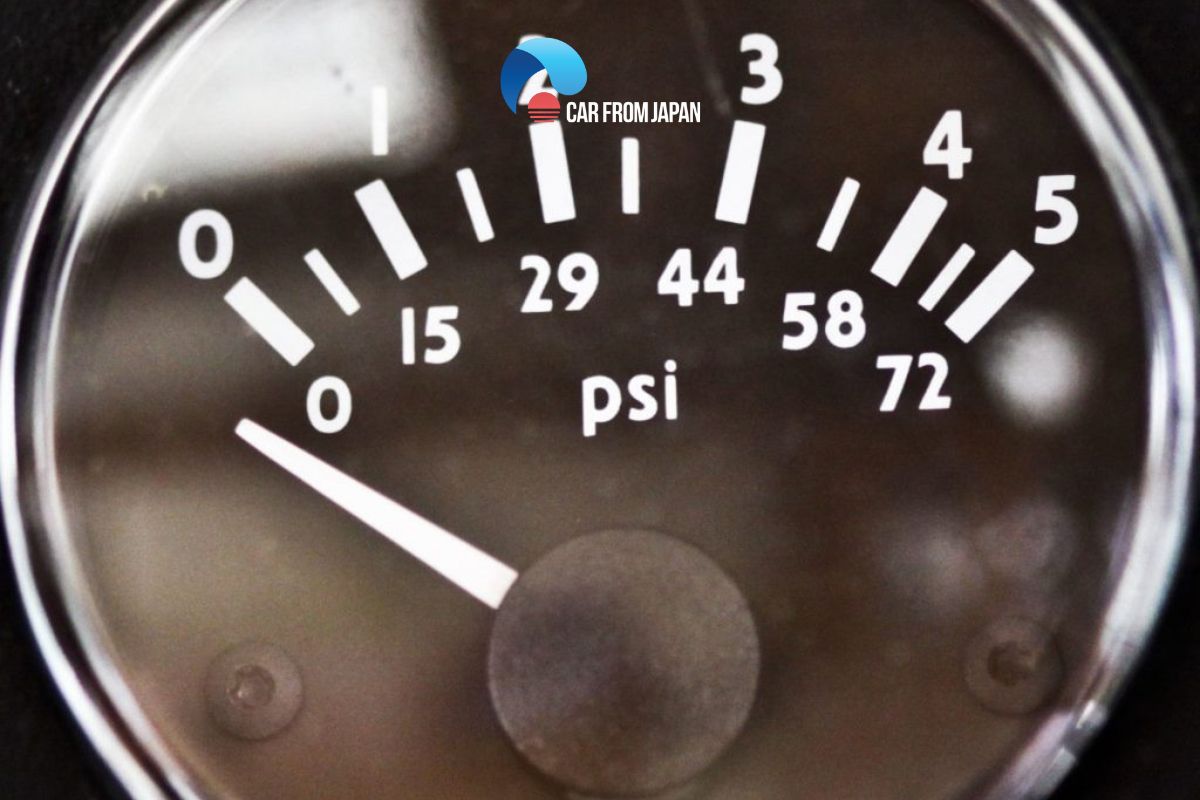

What should oil pressure be at idle? Let’s guess! (Photo: oards.com)

As we all know, engine oil not only helps the moving parts of the engine operate smoothly but also helps to cool them. If the pressure is too low, the engine will not be properly cooled, and it can cause serious consequences.

This difference in the oil pressure will happen as the oil’s viscosity thins due to heat. Most vehicle engines have an oil pump.

The principle is to increase pressure with speed, so the engine spins higher and the result is the oil pressure increases.

This function makes sure that parts in your engine have enough lubrication as they move faster and start generating more heat.

When your car runs idle, you don’t need the high oil pressure. 20-25 PSI is sufficient for most engines. You just ensure that the pressure will go up when your car increases its speed.

What Causes Low Oil Pressure At Idle?

Now you know what is normal oil pressure at idle. However, if you notice that the oil pressure is too low at idle (below 20 PSI), there may be a problem with your car.

If the oil pressure is lower than the standard level, the engine will not have the necessary amount of lubricant. This makes the parts and components easy to wear and causes overheating and damage.

As we know the oil pressure at a high speed is about 60-70 PSI. So why the oil pressure is low while running at idle?

The car is low on engine oil

Car oil shortage is the most common cause of oil pressure drop at idle. Because the amount of oil is not supplied to the engine, the oil pressure drops. To know exactly if this is the cause, check the amount of oil available with the dipstick.

If you see that the amount of oil is too low, near or below the Low level, this is the reason.

There are many reasons why the car is low in oil such as the car has not been changed for a long time. The oil is leaking due to open pipes, or worn crankshaft bearings.

Dirty oil

Engine oil is responsible for cleaning the internal components of the engine. Therefore, over time, it will accumulate many impurities and residues.

On the other hand, because of working in a high-temperature environment, the oil is also gradually degraded.

If the oil is not replaced periodically, it will become heavier and denser due to dirt (low viscosity) causing the oil pressure to easily drop or increase. Seriously affecting the efficiency of lubrication – cooling – cleaning the engine.

The oil pump/oil filter is damaged

If the pump system is damaged, the oil cannot be sucked up normally or the filter is blocked, it will make it difficult for the oil to circulate. From there, leading to low oil pressure or loss of oil pressure.

Therefore, pay attention to choosing an oil with the right viscosity for your vehicle to avoid low pressure.

In addition, it is also important to learn carefully the other specifications of the oil such as API, ACEA, etc. to buy the best product.

Oil pressure sensor malfunction

Most cars today are equipped with an oil pressure sensor. If it detects a problem with the oil pressure (too low or too high), this unit will send a signal to the ECU.

The warning light is then turned on to remind the driver to correct the error. However, sometimes, the sensor is dirty or damaged, so it sends the wrong signal, even though the oil pressure is still keeping a stable level.

Using a low viscosity index oil

The viscosity Index (SAE) is a measure used to identify the density of oil. Specifically, the lower the SAE, the thinner the oil will be.

For example, the 10w30 large displacement Essenza oil will be thinner than the 10w40 oil. If the viscosity index is too low, the oil is too thin and the oil pressure in the engine is reduced.

Related post: 5 Low Engine Oil Symptoms And What To Do

How To Fix Low Oil Pressure At Idle?

what is the normal oil pressure at idle

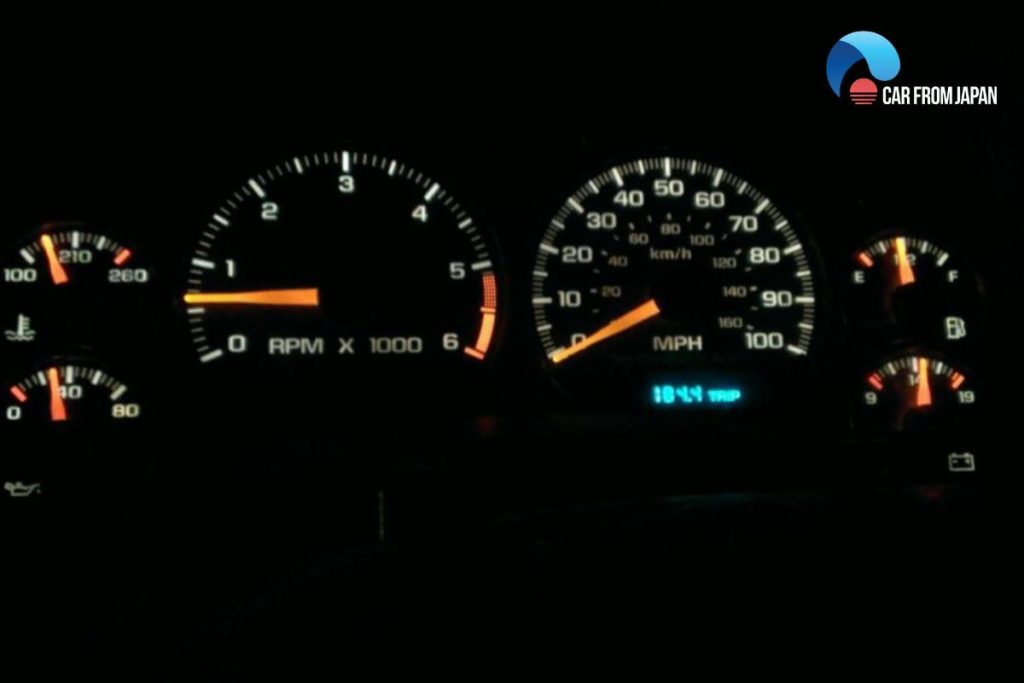

Oil pressure drops at idle: Is it a big problem? (Photo: pinterest.com)

To keep the engine running in top condition, oil pressure should be checked periodically and within the manufacturer’s recommended range.

The oil will thicken and have a higher pressure when the engine is cold. Whereas the oil pressure will decrease as the engine warms up. To ensure accuracy we should check the oil pressure when the engine is at operating temperature.

Step 1: Check the oil level.

Open the bonnet and check the vehicle’s oil with the dipstick. If the oil in the car is still full and the oil pressure indicator light is on, it means the car is having other problems.

If the oil level is below the marked position, at that time, the car is out of oil and needs to be replaced.

Step 2: Inspect the oil pressure sensor.

Remove the sensor, insert the pressure gauge and start the car. If the value is returned to the standard oil pressure value, the sensor is faulty. If the return value is lower than the standard value.

The sensor is still working fine, but the oil pressure is low due to other reasons.

Step 3: Don’t forget to check the filter/oil pump

Remove the oil filter and check it for debris. If so, you need to clean (or replace it if necessary). According to experts, the car oil filter should be changed about every 10,000 miles.

If the car has very low oil pressure or no oil pressure, check the oil pump drive belt.

Step 4: Check the crankshaft bushing

Check the condition of the crankshaft bearings. If signs of wear are detected, this is most likely the cause of the oil leaking, reducing the oil pressure at idle.

The solution, in this case, is to replace the crankshaft bearing with a new one, then add engine oil.

How To Prevent Low Oil Pressure At Idle?

Oil changes regularly

Maintaining clean, fresh oil is crucial for preventing low oil pressure at idle. Over time, oil degrades, losing its viscosity and ability to lubricate effectively.

Dirty oil also contains contaminants that can clog oil passages, further restricting oil flow and contributing to low pressure.

Regular oil changes ensure that the engine receives the proper lubrication it needs, maintaining optimal oil pressure at all engine speeds, including idle.

Use the correct oil viscosity

Oil that is too thin (low viscosity) will not provide adequate lubrication at higher temperatures and may lead to low pressure at idle.

In contrast, oil that is too thick (high viscosity) can create excessive resistance and impact oil flow and pressure, particularly when the engine is cold.

The correct viscosity ensures proper lubrication and maintains the designed oil pressure within the engine.

Replace the oil filter

The oil filter prevents contaminants from clogging oil passages and reducing oil pressure.

A clogged or dirty oil filter restricts oil flow, which directly impacts oil pressure, particularly at idle when the oil pump is operating at its lowest speed.

You should regularly check and replace the oil filter, with every oil change, ensure unrestricted oil flow and maintain optimal oil pressure.

Beware of oil leaks

Oil leaks can significantly contribute to low oil pressure, especially at idle. Leaks can occur from various locations, such as the oil pan gasket, valve cover gaskets, or even the oil filter itself.

These leaks reduce the overall oil volume in the engine, leading to lower oil pressure.

Identify underlying engine problems

Sometimes, low oil pressure at idle indicates a more serious underlying engine problem.

Worn engine bearings, a failing oil pump, or even a malfunctioning oil pressure sensor can all contribute to low oil pressure readings.

Sometimes, it’s crucial to have the engine thoroughly inspected by a qualified mechanic. They can diagnose the root cause of the problem and recommend the necessary repairs.

low oil pressure at idle

FAQs on Car Oil Pressure At Idle

Can switching to synthetic oil lower my idle oil pressure?

Yes, slightly. Synthetic oil often flows better at low temperatures and can cause a small drop in pressure at idle, but that doesn’t mean it’s harmful.

Why does my oil pressure gauge fluctuate only when idling on a slope?

Oil pickup positioning can be affected on inclines, especially if oil level is low, causing brief pressure drops that correct when on level ground.

Is high idle oil pressure a bad sign?

Yes. Excessively high pressure (even at idle) may indicate a blocked oil passage, malfunctioning pressure relief valve, or thick oil that’s unsuitable for your engine.

My oil light flickers at idle, but pressure returns to normal when revved, is that okay?

No. Flickering indicates borderline low pressure.

It might be a failing oil pressure sensor, but it’s also a red flag for potential oil pump or wear issues.

Why does my oil pressure drop at idle only after a long highway drive?

As the engine heats up and oil thins out, pressure naturally drops, especially noticeable at idle after extended high-speed operation.

Conclusion

In conclusion, 20 to 35 PSI is the answer for a quest of what is normal oil pressure at idle.

We have outlined the causes of low oil pressure at idle and how to check and fix it quickly. Hope this article has brought you insightful knowledge!

If you have some questions about the oil pressure at idle, comment in the following box below!
