Many people said measuring rotor thickness is an important aspect of doing a brake repair.
But why is this? And which is the best time to check rotor thickness and how to do so? Let’s find out the answer in this blog with CarFromJapan’s auto experts now!
Contents
- Important Things To Know About Rotor Thickness
- When To Check Rotor Thickness?
- How To Measure Rotor Thickness?
- FAQs on The Rotor Thickness
- How long do rotors last on average?
- How much do new rotors cost?
- Can I drive with bad rotors?
- Why does rotor thickness matter beyond just safe braking?
- What happens if I resurface rotors that are already near minimum thickness?
- How do mechanics measure rotor thickness accurately?
- Can thin rotors trigger ABS or traction control lights?
- Can I tell rotor thickness problems by feel without measuring?
- Do performance rotors (slotted/drilled) wear faster than solid ones?
Important Things To Know About Rotor Thickness
In the past, most rotors were designed with enough thickness to go 02 or more pad replacements.
Nowadays, to reduce weight and save some costs, many automakers often produce rotors with thinner thicknesses.
Therefore, the rotors are easy to wear down to the minimum thickness (which usually is noted in the factory service manual or on the casting of the rotor) by the time the first set of brake pads needs to be replaced – or maybe sooner in some situations.
Knowing the minimum rotor thickness specification of your vehicle is very important as if the rotor thickness of your car is thinner than the minimum level, your safety will be put in danger.
A worn-out or thinner rotor has less mass than a normal one, leading to a decrease in its ability to absorb and dissipate heat. Moreover, the strength of the rotor is also decreased, leading to more risks of cracking or even braking.
For that reason, it is very essential to check the rotor thickness whenever the brake pads are serviced.
If the thickness of a rotor is below the minimum specification or can not be resurfaced, we have to replace the rotor right away. In some regions this is law.
All rotors on the vehicle usually undergo the same amount of wear. Hence, when it comes to replacing one worn-out rotor, it means you should replace both rotors on the vehicle.
Auto experts advise changing both rotors (even if one still works well) simultaneously to maintain even braking side-to-side. A notable difference in thickness can result in the brakes pulling towards one side.
When To Check Rotor Thickness?
Checking the rotor thickness should be done whenever you replace brake pads or before you resurface the rotors. Doing this will make sure that the rotors have enough metal left for safe braking.
It is a good practice to do this every time you change the brake pads, regardless of the interval between changes.
The checking process takes you less than 5 minutes and is a good safety measure to be in the habit of.

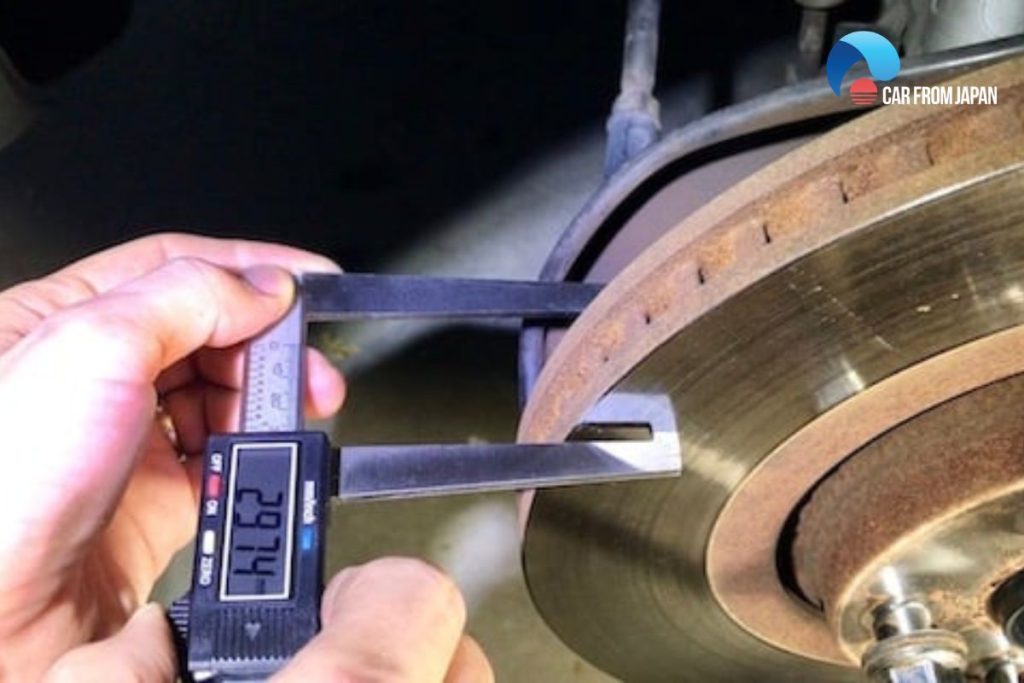

How To Measure Rotor Thickness?
When it comes to measuring rotor thickness, you just need to follow the detailed testing procedure in any factory service manual. Most procedures often say you can simply use a micrometer to measure rotor thickness, in 8-10 different places.
While measuring, keep a distance of about 45’ apart and 10mm from the rotor edge. Importantly, all the readings should be above the minimum requirement for thickness.
Moreover, by no means, it should exceed the minimum brake parallelism values on the list in the manual. This is mandatory to ensure a consistent and smooth braking performance.
After that, here is the proper guide for measuring rotor thickness:
- Depending on the rotors that drivers want to measure, you might need to lift the rear or the front of the automobile. After that,
- Use the jack stand, a tool that must be used to secure the car.
- Remove the lug nuts to take off the wheels. And then remove the brake pads.
- Remember to give the braking surface a good look: You want this place to be cleaned and smooth, with no cracks, and no visual damage at all.
- Measure the thickness of the brake rotor. It is inside the outer circumference of the rotor every one-eighth of a rotation.
- Lastly, check the rotor to see if it fits with the minimum thickness. Or else, you need to replace it.
Brake rotor thickness chart:
| Passenger Cars and Light Trucks | Heavy Trucks and SUVs | |
| Front rotor minimum thickness | Typically between 10 mm (0.394 inches) and 28 mm (1.102 inches). | Between 28 mm (1.102 inches) and 38 mm (1.496 inches). |
| Rear rotor minimum thickness | Typically between 8 mm (0.315 inches) and 20 mm (0.787 inches). | Between 20 mm (0.787 inches) and 30 mm (1.181 inches). |
Read More: Warning signs of brake problem you need to know
FAQs on The Rotor Thickness
How long do rotors last on average?
Many factors affect the average lifespan of your brake components. They are the type of pads, rotors, your driving style, and your maintenance.
According to most companies producing brake pads and skilled mechanics, brake pads can last from 30,000 miles to 70,000 miles.
The lifespan of brake rotors is quite longer (3 times longer than pads)!
How much do new rotors cost?
The average cost for new rotors varies from $30 to $75 each. Some better performance rotors can cost you from $100+ per each.
Besides, prices depend heavily on many other factors like type, brand, and quality.
When it comes to replacing brake rotors, some people often consider if they should buy aftermarket parts or manufactured ones (OEM).
Both aftermarket and OEM parts have their own benefits!
Can I drive with bad rotors?
The rotors play an important role in allowing your car to stop once the car is in motion.
If the rotors don’t work well, you may not be able to stop your car properly in an emergency case.
This can lead to many dangers if you need to stop to avoid pedestrians, a bike, a car crash, or other driving situations.
Why does rotor thickness matter beyond just safe braking?
Because rotor thickness affects heat capacity. Thinner rotors can’t absorb or dissipate heat effectively, leading to brake fade, warping, and even ABS malfunctions.
What happens if I resurface rotors that are already near minimum thickness?
You’ll compromise safety. Thin rotors overheat faster and can crack under heavy braking. Plus, you’ll likely fail inspection if checked with a micrometer.
How do mechanics measure rotor thickness accurately?
With a micrometer, not a caliper. It ensures precision within 0.01 mm and can detect uneven spots across multiple points on the rotor face.
Can thin rotors trigger ABS or traction control lights?
Indirectly, yes. If thin rotors cause vibration or uneven braking force, the wheel speed sensors can pick up irregular signals and confuse stability systems.
Can I tell rotor thickness problems by feel without measuring?
Sometimes. Symptoms like pulsation, long pedal travel, or fading brakes suggest heat damage or thinning, but measurement is the only sure way.
Do performance rotors (slotted/drilled) wear faster than solid ones?
Usually yes. Because the slots and holes reduce mass and heat capacity, though they improve cooling and bite for high-performance driving.
Check out this video from Innova Electronics to learn more useful knowledge about brake rotor and rotor thickness!
