When And How To Change A Serpentine Belt

If you make a list of the most frequently replaced items in a modern vehicle, serpentine belts will definitely be on one of the top positions. Considering the lifespan of V belts in older vehicles, these last longer but wear out, eventually. If you like to fix things in your garage, it will be handy to know how to change a serpentine belt.

When Does A Serpentine Belt Need Replacement?

There is no recommended replacement period for a serpentine belt. The general rule of thumb is to inspect it at every oil change, which means every 30,000 to 50,000 miles or once a year. The replacement is required only when the belt’s condition is bad.

Besides, you may replace the belt at the time of servicing the cooling system. In some engines, the belt also runs the radiator fan, water pump, heater core, and supercharger. You have to change it when replacing or repairing any of these components.

There are some signs to watch out for a bad serpentine belt. The symptoms are mostly noises coming from different components. The belt will slip and create noise when the V-ribs on its lower side wear out.

Serpentine Belt
A new belt.

     SEE MORE

Misalignment of the pulleys is another reason for the noise. Several types of pulleys including an automatic belt tensioner pulley, idler pulley, power steering pump pulley, and water pump pulley can create the belt noise. A loose or worn out harmonic balancer can also create a similar sound.

The worn out bearings of the idler pulleys can also create such noises. In that case, you have to replace the pulleys because it is not possible to apply lubrication to the bearings or re-seal them.

How To Change A Serpentine Belt?

The serpentine belt runs through all engine-driven accessories including the water pump, power steering pump, AC compressor, and alternator. The long belt simplifies the operation of all pumps and pulleys under the hood.

You will need these tools and follow the steps to replace it.

1. Tools for the Replacement

  • A serpentine belt
  • Basic hand tools
  • Removal tools
  • Rags

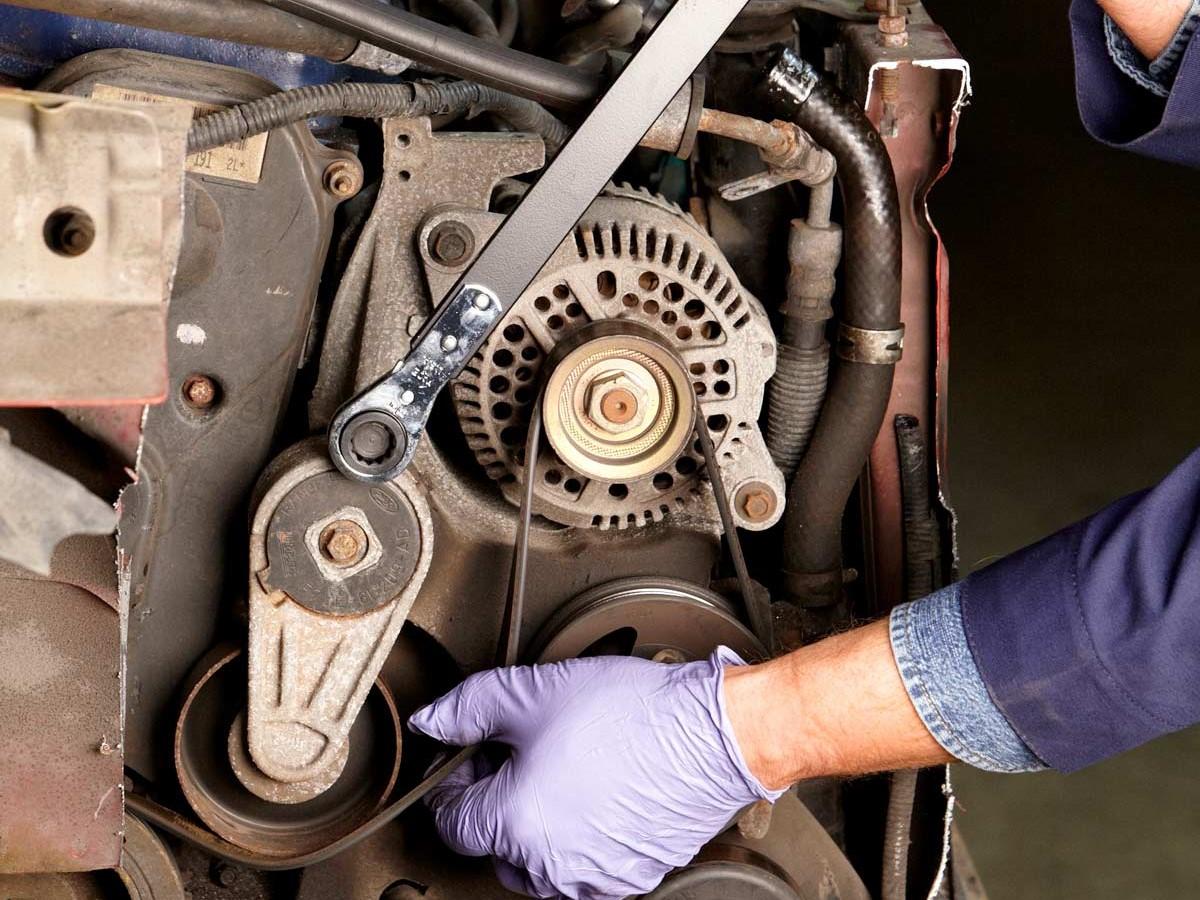

how to change a serpentine belt
The belt wraps around several pumps and pulleys.

2. How To Change A Serpentine Belt: The Steps

  1. Check the belt routing diagram before starting the process. If you don’t find the owner’s manual, get the diagram from online. Carefully observe how the old belt wraps around the pulleys.
  2. Place the wrench or a removal tool with enough room to wiggle on the tensioner before releasing it. Release the self-adjusting tensioner from the belt with caution.
  3. Remove the old serpentine belt. You should also check the tensioner pulley at this time for possible wear. You will need to replace it in case of any damage, or extremely tight or loose connections.
  4. Check all the pumps and pulleys for the water pump, AC compressor, smog pump, and alternator. Don’t forget to inspect the idler pulleys too. Be sure that every single one of them is moving freely without being loose or tight.
  5. Place the new belt into its route. Make sure that the belt ribs go into the grooves of the pulleys.

Tighten the tensioner. This is how to change a serpentine belt.
