AirBag Deployment: What Are The Required Conditions?

Airbags are by far one of the most important automotive security systems. When an accident happens, the airbag will operate and reduce most of the damage to the driver and other people in the car. Yet many drivers do not know airbag deployment conditions nor its operation to deploy. In this article, we will tell you more about how air bag system works and in what exact conditions the airbag would deploy.

The Deployment Of Air Bag

The airbag control Unit (or ACU) is the main part that controls the airbag through impact calculation and chemical mixture. The rapid speed and safety of this technology turn airbags into the safest system for automobiles.

How does the airbag work?

Through many related car parts like impact sensors, side pressure sensors, accelerometers, brake pressure sensors, wheel speed sensors, gyroscopes,…, the ACU can determine and be ready to trigger the bag when the crash occurs. In order to do that, an initiator or electric match is essential.

The ACU initiator takes the role of initiating the gas generator. An electrical conductor inside it is the key to this activity: When the conductor obtains enough heat, it ignites the combustible material wrapping around it and rapidly forces the gas to the airbag.

Once the required threshold has been reached, the ACU will immediately inflate the airbag by triggering the gas generator and letting the gas fill the space through vent holes.

Watch a video to understand more about the operation of the airbag:

Inflation only occurs approximately 60 milliseconds after the first contact. The airbags will protect both drivers and passengers from direct impact. After that, the gas will escape through these holes, which makes the airbag smaller over time, for the driver to get out.

The ACU developers have also carefully calculated the inflation time. The airbag must inflate to its full state quickly enough to protect the driver from the vehicle’s interior. If the time of deployment is too slow or too fast, passengers can be injured by contact with the interior or even the airbag itself.

What about the impact from the side, you might ask? Thanks to various signals from car sensors, the ACU can calculate the force and the angle of the impact, as well as other variables, in order to perform seat belt pre-tensioners or airbag inflation.

For that reason, according to airbag safety rules, drivers must wear seatbelts at all times. Depending on these calculations, direct and side impact will never be a big trouble with the ACU.

Airbag deployment conditions

Many people are wondering: How can the airbag know exactly when to deploy? It needs a special airbag control part for this. The airbag system contains a sensor called a MEMS accelerometer, a small circuit with integrated mechanical elements. These microscopic elements will capture and recognize sudden deceleration, and then send a signal to trigger the airbag. In the United States, the minimum speed for airbag deployment is 23 km/h (14 mph).

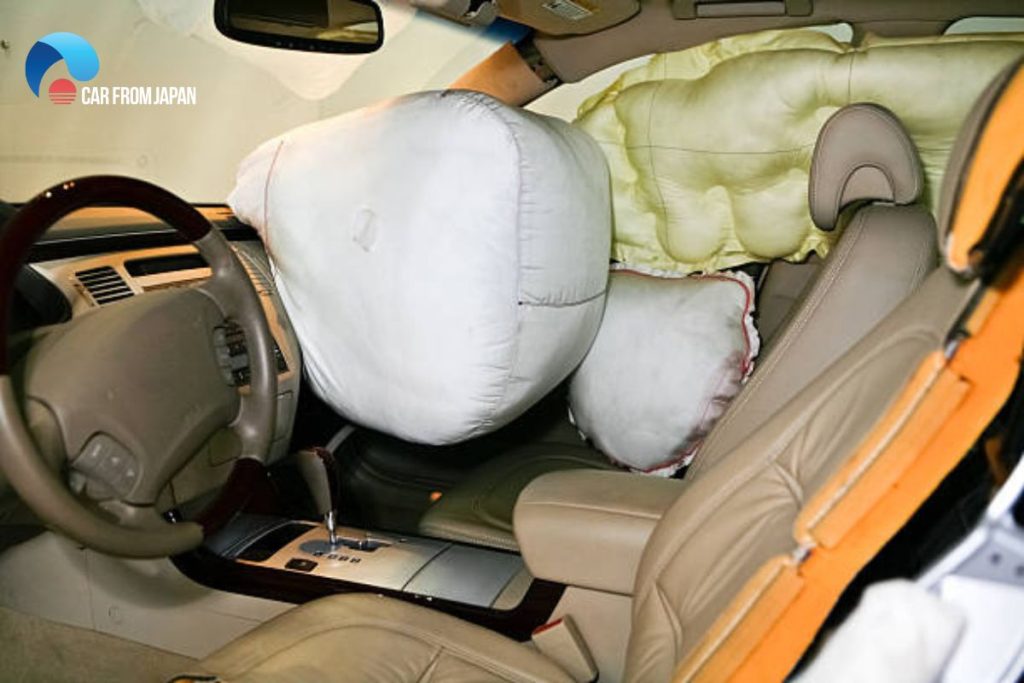

when will airbags deploy
When will airbags deploy (Photo: istockphoto)

5 years ago to today, temperature has been the essential element in airbag deployment conditions. When the heat from the vehicle fire reaches 150 to 200 °C, the airbag will automatically deploy. This feature is not only safer for the drivers but also reduces the chance of causing explosions of the airbag.

Today, the condition to trigger the airbag is more complex. Since real-life collisions are usually different from those in the lab, in order to boost the efficiency, the researchers must reduce inconsequential deployments, the occupant weight, seat belt, and driving seat location, as well as recalculate the speed to crash conditions.

Inflation

When it comes to opening the frontal airbags, it is the job of the inflator unit. Thanks to the signal sent from MEMS, an igniter starts a chemical reaction to generate nitrogen gas for airbag filling. The total process from deployment to inflation is approximately 0.04 seconds, which is rapid to reduce the risk of the occupant hitting car parts.

Some airbags use energetic propellants, while other technologies apply argon gas.  The amount of propellants is different with each airbag, depending on the location of the automobile. The airbag in the passenger side container usually holds 200 grams of sodium azide, while the one on the driver side contains just 50 grams.

After the deployment

Once an airbag is triggered, the deflation will begin by releasing the gas through small vents in the cushion. Along with the gases, there is also a mixture consisting of French chalk, talcum powder, or cornstarch. This mixture will lubricate the airbag during the process.

In older designs, this dust contains azide-based propellant, which causes minor damage to soft body parts. However, after contact with air, the chemical mixture quickly becomes baking soda and creates almost no harm to car owners. Minor irritations only happen when the car windows are locked and closed completely for a period of time.

The Deployment of Airbag

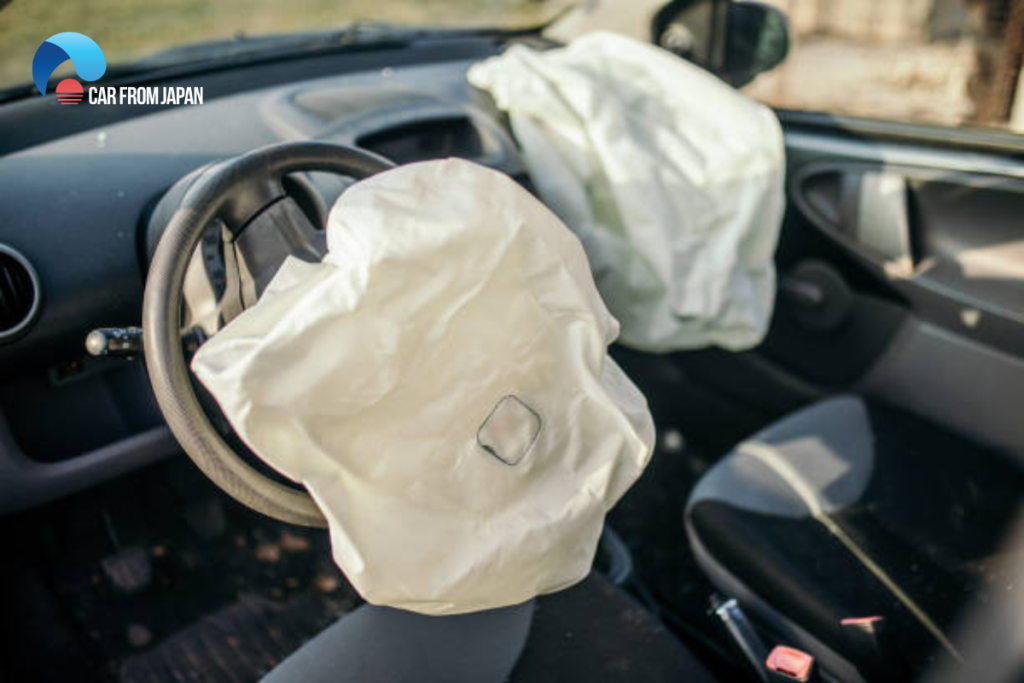

how does the airbag work
How does the airbag work (Photo: istockphoto)

Many people might be wondering: how fast does an airbag come out? Is it fast enough to save my life when I am traveling at a very high speed? In order to answer that question, drivers must understand how the airbag works.

Crash sensors

This is, without a doubt, the most important part of the airbag system. In order for the airbag to know when to deploy, there must be car parts that can tell when the car is being damaged in an accident. How fast does an airbag come out will be decided by two factors, and the car sensor is one of them.

Crash sensors will respond to any set of stimuli, relay the signals to the system, and orchestrate other safety features, from automatic door locks to airbag deployment. There are many different sensor types, which measure different things, from brake pressure and brake impact, to wheel speed, seat occupant,… This is also the key to the airbag system and, of course, the most technologically advanced and expensive part.

Inflator

The inflator system is the place to receive the signal, which determines the question: how fast does an airbag come out?  This part will set off a charge, which produces a nitrogen gas explosion and fills the airbag. According to the study, this whole process only happens in 25 to 55 milliseconds. After that, the airbag will deflate through many small holes on the airbag’s surface.

Final Thoughts

At the end of the day, just remember this one simple rule: an airbag isn’t triggered by the crash, it’s triggered by the sudden stop.

It’s a smart system that’s not looking at the crumpled metal; it’s waiting to feel that violent, forward jolt. That’s why a big rear-end collision might not set it off, while hitting a pothole at the perfect (or imperfect) angle could. You can trust that it’s designed to pop out only when it’s truly needed.

Philipp Meister
Philipp Meister
Philipp Meister is a valuable member of the Car From Japan blogger team. With a degree in Automotive Technology from the Technical University of Munich and over 20 years of experience as a technician at various Volkswagen dealerships, Philipp brings a wealth of knowledge to his writing. A lifelong car enthusiast, he offers insightful discussions and keeps readers informed on the latest automotive trends. If you're passionate about cars, Philipp's blog is a must-read.
RELATED ARTICLES

8 COMMENTS

  1. Hi
    I have tought on air bag deployment weather air bag deployment depends on the impact of the vehicle means if there is an smaller impact the deployment also small

    • Sorry for the rude ass people. I know what you’re trying to ask—does the size or intensity of the impact have a direct effect on the size of the airbag deployment, and the answer is no! No matter what severity of collision you experience, if the air bag deploys, it will always deploy to its fullest size and tension! The airbag doesn’t know “just how much” to deploy itself, it goes full out.

      People are very, very rude to people studying English, especially Americans, and I’m very sorry about that.

      • The last commenter is not correct, modern airbags have two stages. it can deploy one stage, two stages or both depending on the severity of the crash.
